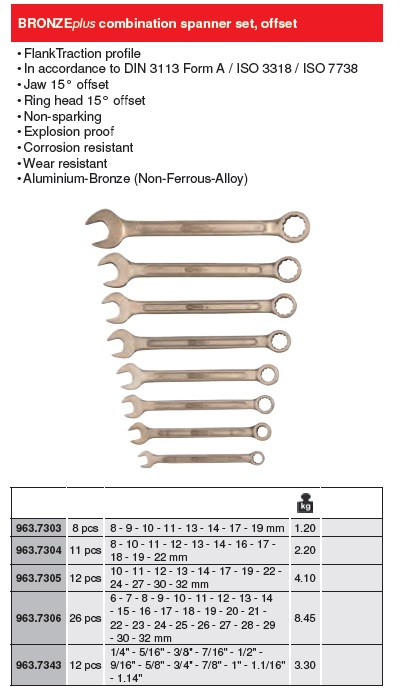

產品簡述:
FlankTraction profile
In accordance to DIN 3113 Form A / ISO 3318 / ISO 7738
Jaw 15° offset
Ring head 15° offset
Non-sparking
Explosion proof
Corrosion resistant
Wear resistant
Aluminium-Bronze (Non-Ferrous-Alloy)
Technical Data
DIN: DIN 3113
function attribute 1: non-sparking
fork position: 15° jaw position
weight in g: 1200g
page main catalogue: K15_298
material1: alluminium bronze
max. wrench size: 19mm
min. wrench size: 8mm
profil1: flank traction
profil2: metric
spanner form: ring 15° offset
parts in the set: 8 pcs
This products contains the following products
963.7267 BRONZE+ Combination spanner 8 mm
963.7268 BRONZE+ Combination spanner 9 mm
963.7269 BRONZE+ Combination spanner 10 mm
963.7270 BRONZE+ Combination spanner 11 mm
963.7272 BRONZE+ Combination spanner 13 mm
963.7273 BRONZE+ Combination spanner 14 mm
963.7276 BRONZE+ Combination spanner 17 mm
963.7278 BRONZE+ Combination spanner 19 mm
|
